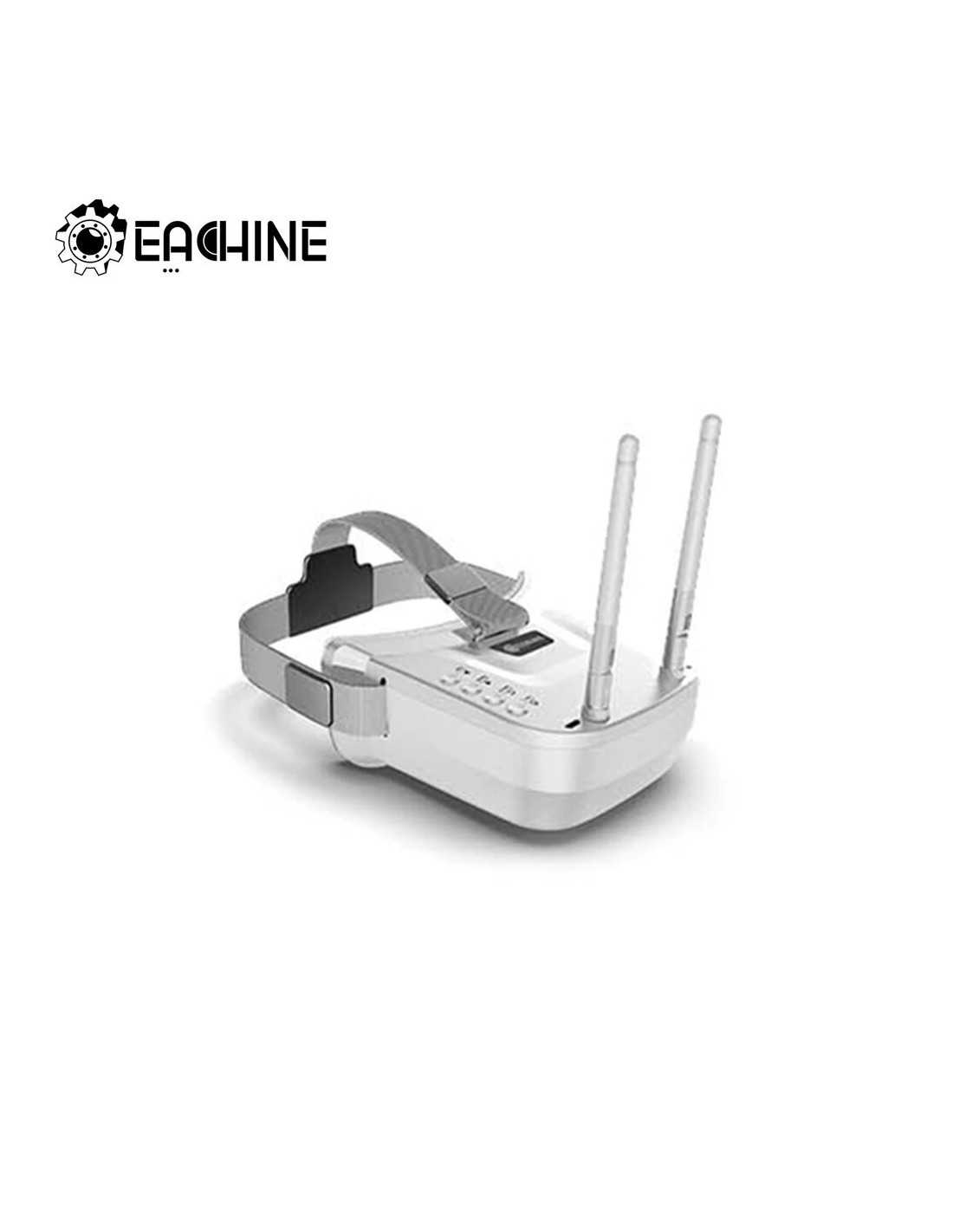

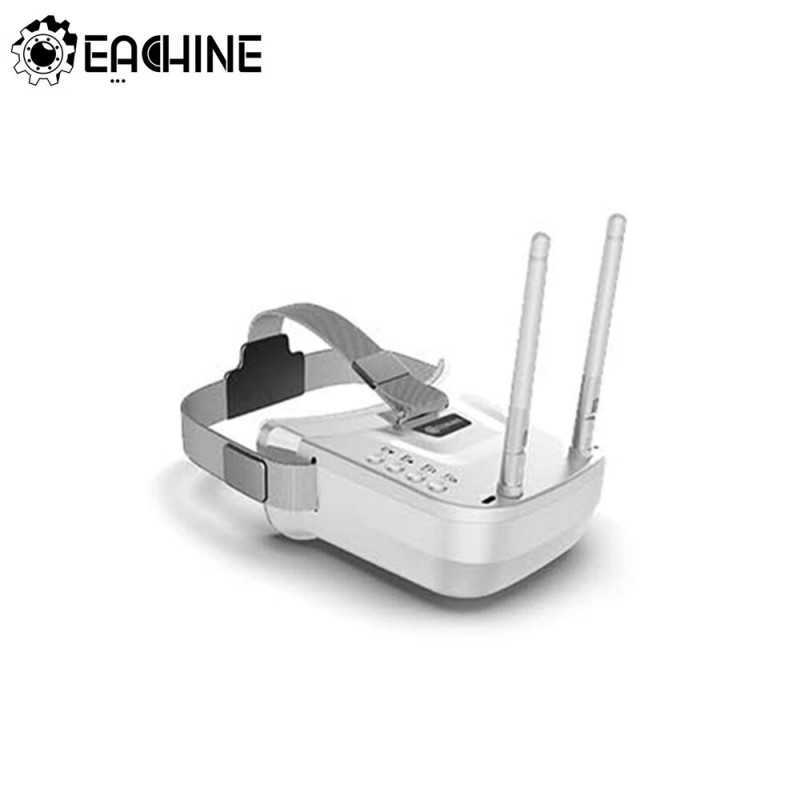

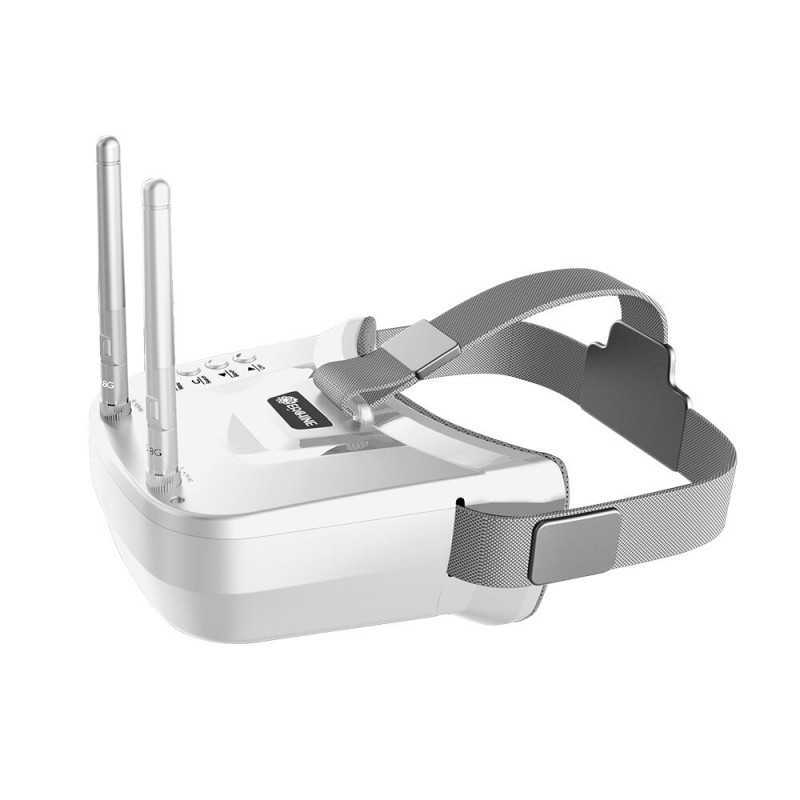

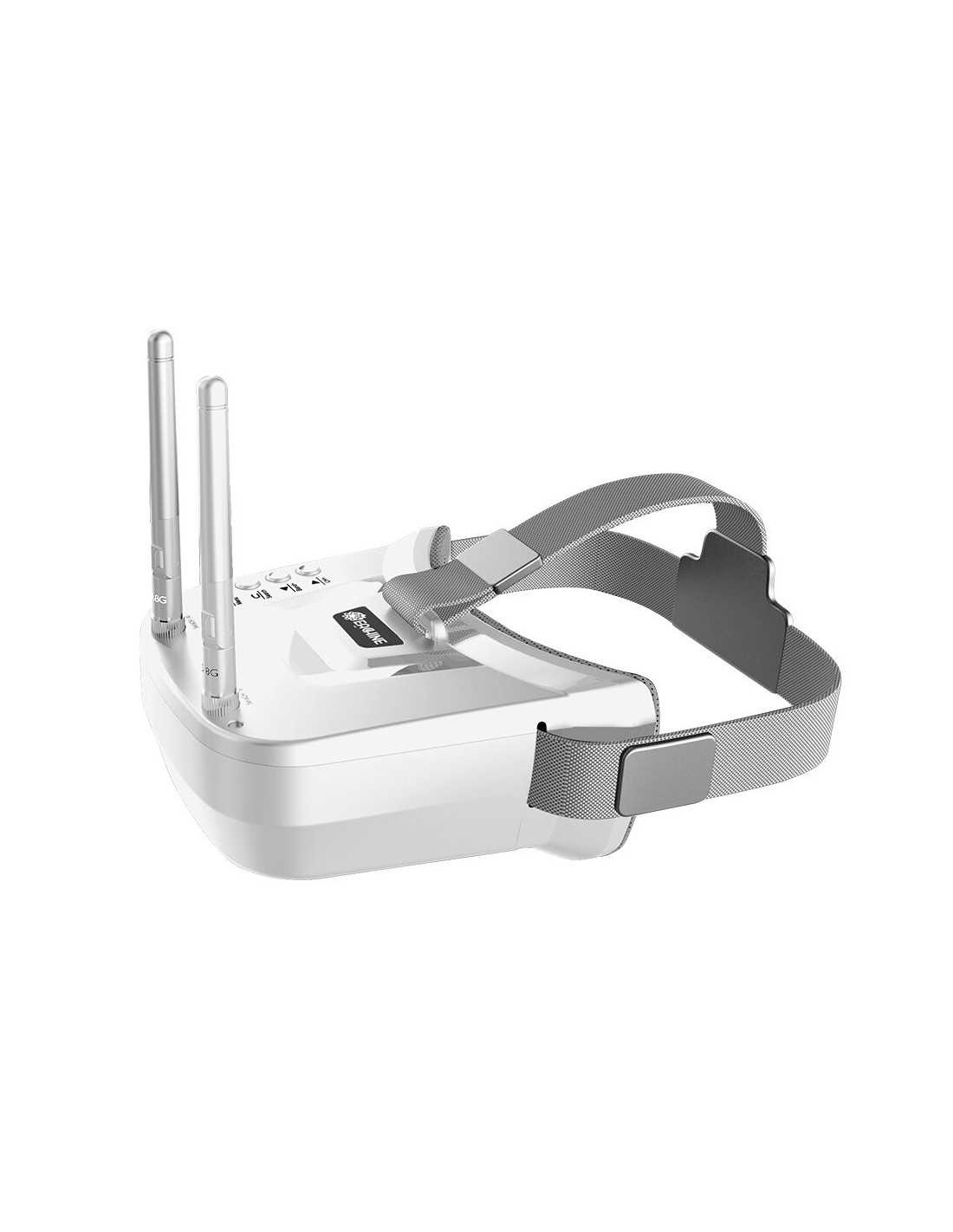

    Eachine VR009 5.8G 40CH Auto-Searching Double Antennas mini FPV Goggles 3.0 Inch 480*320 LCD Screen Built-in Battery - Black

    Out-of-Stock
    kr649.00

    By buying this product you can collect up to 6 points. Your cart will total 6 points that can be converted into a voucher of kr12.00.

    Tax included

    • Security policy (edit with Customer reassurance module) Security policy (edit with Customer reassurance module)
    • Delivery policy (edit with Customer reassurance module) Delivery policy (edit with Customer reassurance module)

    Specification:

    Model
    NameMini FPV Goggles
    LCD ScreenScreen size: 3.0 Inch
     Resolution: 480*320
     Display Ratio: 16:9
     View Angle: 6 o'clock
     Brightness: 500cd/m² with high brightness backlight LED
    Video delayVideo time-delay less than 20ms
    Lens4X Fresnel Lens, 92% transparent rate no distort of light
    InterfaceAntenna: 2 X RP-SMA male
     USB: To charge the battery
     AV Jack: External video signals input or internals AV signal output
    LanguagesEnglish and Chinese
    Power SupplyPower adapter: DC5V/1A (USB interface)
     Battery: 3.7V/1200mAh,Each full charge revive around 2.5hr working time


    Power Consumption:

    *The device operating current of 300~330mA at 3.7~4.2V;

    *Built-in battery maximum charge current of 500mA;

    Body

    Dimension: 13.5cm * 13.2cm * 6.5cm

     Weight: 180g(with headband, not included antennas)



    Feature:

    - Small size and light weight;

    - Low power consumption, Working current 300~330mA;

    - Double antenna reception to make the signal more stable;

    - RaceBand 40 channel, Auto-Searching;

    - 3.0 Inch 480*320 dot high brightness LCD screen;

    - Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;

    - Built-in 3.7V/1200mAh high-capacity Li-ion polymer Battery;

    - Universal USB charging interface;

    - Real-time video return, Very low time-delay;

    - Bilingual menu in support of Chinese and English;

    - Support external video signal input;

    - Support AV signal output (Connect external DVR);





    Band and Channel selection:

    CH      CH 1          CH 2          CH 3          CH 4          CH 5          CH 6          CH 7         CH 8

    GROUP

    A        5865 MHZ 5845 MHZ 5825 MHZ 5805 MHZ 5785 MHZ 5765 MHZ 5745 MHZ 5725 MHZ

    B        5733 MHZ 5752 MHZ 5771 MHZ 5790 MHZ 5809 MHZ 5828 MHZ 5847 MHZ 5866 MHZ

    E        5705 MHZ 5685 MHZ 5665 MHZ 5645 MHZ 5885 MHZ 5905 MHZ 5925 MHZ 5945 MHZ

    F        5740 MHZ 5760 MHZ 5780 MHZ 5800 MHZ 5820 MHZ 5840 MHZ 5860 MHZ 5880 MHZ

    R        5658 MHZ 5695 MHZ 5732 MHZ 5769 MHZ 5806 MHZ 5843 MHZ 5880 MHZ 5917 MHZ



    Package Included:
    1 x Eachine VR009 Goggles
    1 x 3.7V 1200mAh Battery
    2 x Antenna
    1 x USB Charging Cable
    1 x Manual
